ASTM 316 - EN 1.4436

Name: ASTM 316 - EN 1.4436
Brand: Ninesteel
Price: 9999.0 USD
Availability: InStock

Product variants

316/4436 is an austenitic CrNiMo stainless steel, possessing elevated carbon content and analogous corrosion protection. Its multiple sizes and varieties of product forms may be used to obtain diverse functional and aesthetic finishes.

Equivalent grades

• ASTM 316
• DIN 1.4436
• UNS S31600
• X3CrNiMo17-13-3

Chemical Composition Reference

0.04C-16.9Cr-10.7Ni-2.6Mo

Physical Property Reference

• Density: 8.0 kg/m³

• Tensile Strength: 590 MPa

• Yield Strength: 220 MPa

• Elastic Modulus: 200 GPa

• Thermal test at 100 ° C: 16 10-6/°C

• Thermal Conductivity: 15 W/m°C

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod
• Pipe/Tube

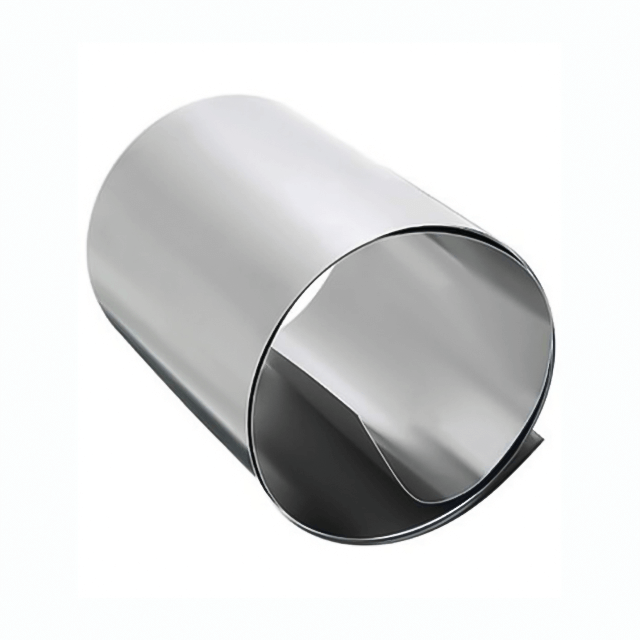

• Coil/Strip

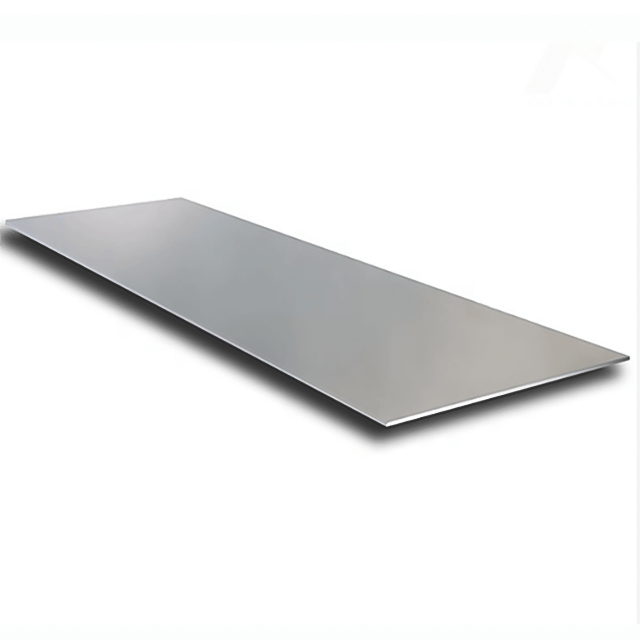

• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

ASTM 316 - EN 1.4436

Essential details

316/4436 is a substitute for 316L/4432, with higher carbon content and similar corrosion resistance. 316/4436 is an austenitic stainless steel, belonging to the standard series of CrNiMo stainless steel. 316/4436 has the variant with the highest molybdenum content and slightly improved corrosion resistance.

Due to its molybdenum content, the standard austenitic grade of CrNiMo can be used for applications requiring higher corrosion resistance. Their well-balanced material properties make them suitable for manufacturing many products.

316/4436 has a variety of product forms and sizes. It can provide a variety of functional and aesthetic surface finishes.

Typical Applications:

- Pulp and paper industry equipment

- Pharmaceutical industry equipment

- Flanges and valves
