ASTM 316L - EN 1.4432

Name: ASTM 316L - EN 1.4432
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

316L/4432 is an austenitic, low carbon stainless steel from the CrNiMo family, featuring improved resistance to intergranular corrosion after welding & increased molybdenum content for better corrosion resistance.

Equivalent grades

• ASTM 316L
• DIN 1.4432
• UNS S31603
• X2CrNiMo17-12-3

Chemical Composition Reference

0.02C-16.9Cr-10.7Ni-2.6Mo

Physical Property Reference

• Density: 8.0 kg/dm³

• Tensile Strength: 570 MPa

• Yield Strength: 220 MPa

• Modulus of Elasticity: 200 GPa

• Thermal test at 100 ℃: 16,0 10-6/℃

• Thermal Conductivity: 15 W/m ℃

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod
• Pipe/Tube

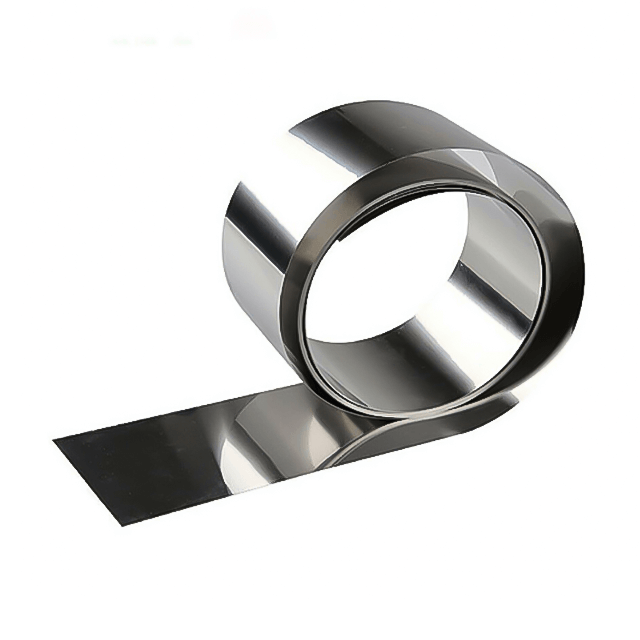

• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

ASTM 316L - EN 1.4432

Essential details

316L/4432 has high resistance to non-oxidizing acids and chloride-containing media due to its higher molybdenum content. 316L/4432 has good formability and weldability.

316L/4432 is an austenitic stainless steel that belongs to the standard CrNiMo stainless steel family. It has low carbon content for improved resistance against intergranular corrosion after welding and increased molybdenum content for slightly improved corrosion resistance.

Due to their molybdenum content, the austenitic CrNiMo standard grades can be used in applications with increased demand for corrosion resistance. Their well-balanced material properties make them suitable for the fabrication of many products.

Typical Applications:

- Drinking water systems

- Cooling systems

- Wastewater systems

- Flanges and valves
