ASTM 317L - EN 1.4438

Name: ASTM 317L - EN 1.4438
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

Alloy 317L is an ultra-low carbon adaptation of the 317 chromium-nickel austenitic variety. It integrates molybdenum, which enhances overall corrosion protection and increases resistance to pitting in chloride-containing solutions. It is not magnetic in the annealed state and can't be hardened through heat treatment, yet it will harden with cold working.

Equivalent grades

• ASTM 317L
• DIN 1.4438
• UNS S31703
• X2CrNiMo18-15-4

Chemical Composition Reference

0.02C-18.2Cr-13.7Ni-3.1Mo

Physical Property Reference

• Density: 8.0 kg/m³

• Tensile Strength: 610 MPa

• Yield Strength: 220 MPa

• Modulus of Elasticity: 200 GPa

• Thermal exp.at 100°C: 16 10-6/°C

• Thermal Conductivity: 14 W/m°C

• Thermal Capacity: 500 J/kg°C

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:

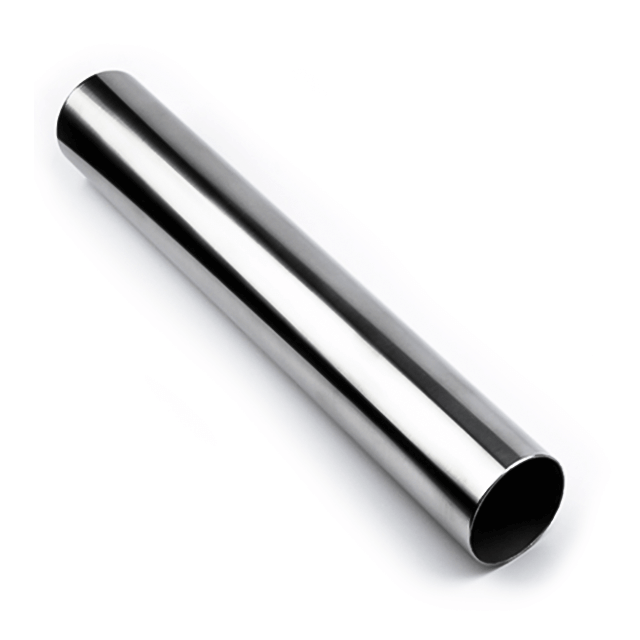

• Bar/Rod

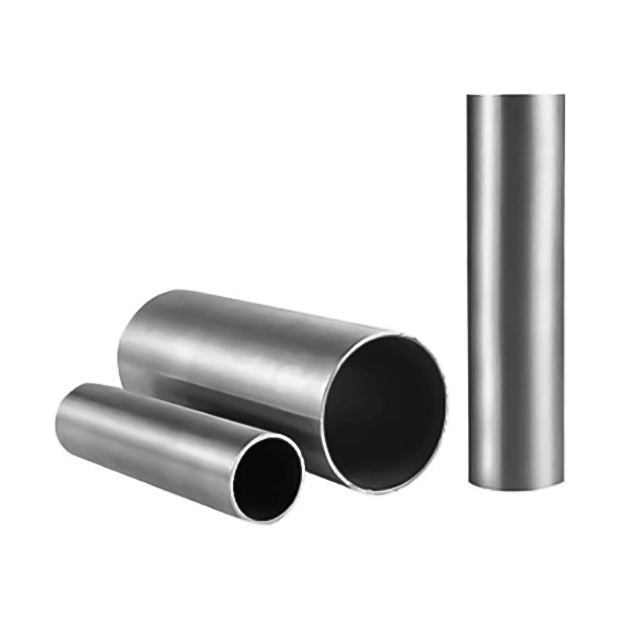

• Pipe/Tube

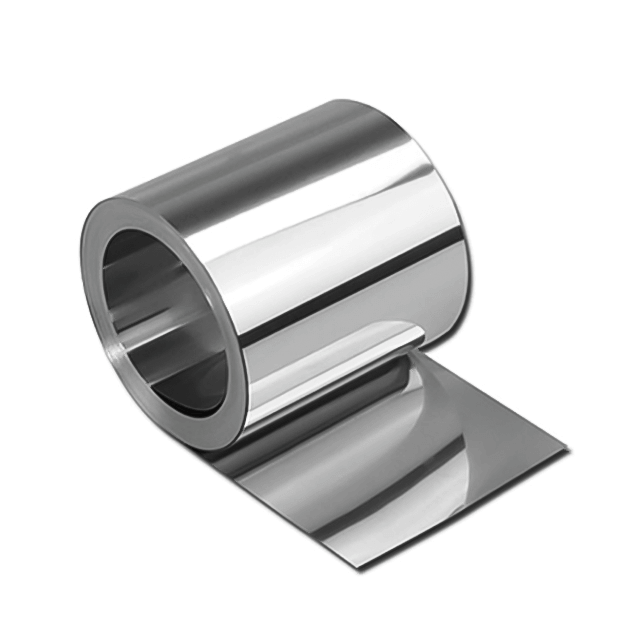

• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

ASTM 317L - EN 1.4438

Essential details

1.4438 is an ultra-low carbon steel. It has good overall and local corrosion resistance. It has good formability and weldability. The alloy has high resistance to chemical attack of acid.

Typical Applications:

- Chemical tankers

- Pulp and Paper equipment

- Condenser tubes and heat exchanger tubes

- Equipment for the petrochemical industry

- Flue-gas desulfurization equipment
