ASTM 410S - EN 1.4000

Name: ASTM 410S - EN 1.4000
Brand: Ninesteel
Price: 9999.0 USD
Availability: InStock

Product variants

ASTM 410S - EN 1.4000 is a low-carbon, chromium-rich ferritic grade, commonly used in oil and coke applications, such as sheets, rods and strips. With a superior level of corrosion resistance and pitting resistance, ASTM 410S - EN 1.4000 is an excellent choice for industries requiring reliable heat resistance and oxidation resistance.

Equivalent grades

• AISI/ASTM 410S
• UNS S41008
• DIN 1.4000
• X6Cr13

Chemical Composition Reference

11.5~13.5Cr, Ni<0.6

Physical Property Reference

• Density: 7.8 g/cm³

• Thermal Expansion: 9.9 x10^-6 /K

• Modulus of Elasticity: 190-210 GPa

• Thermal Conductivity: 24.9 W/m.K

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod

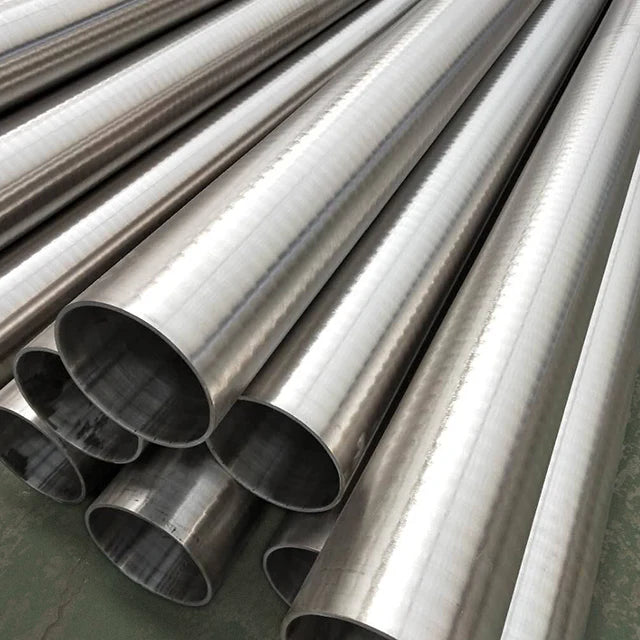

• Pipe/Tube

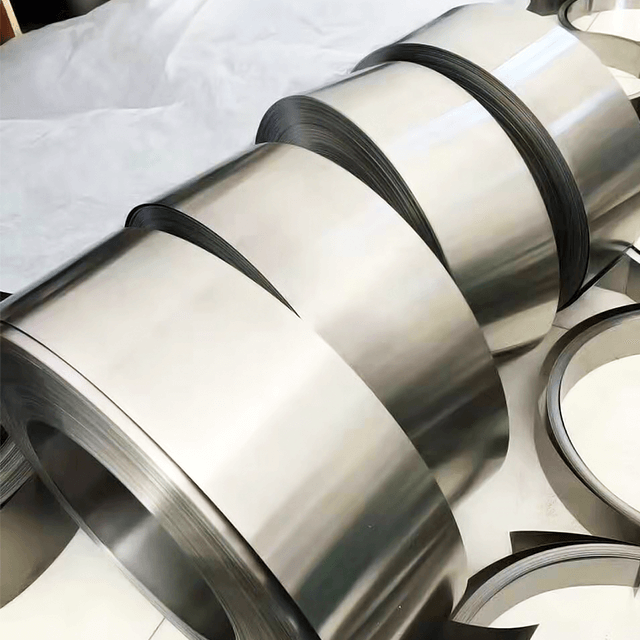

• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

ASTM 410S - EN 1.4000

Essential details

ASTM 410S shows resistance to steam, alkaline solutions, acids such as - nitric acid, formic acid, oxalic acid, salts - nitrates, nitrites, carbonates, as well as hot fumes of petroleum, fuels, alcohols, ethers, food products, lubricants, water and oils.

The material is used for the production of rectification columns, cracking pipes, heat exchangers, parts of machinery and equipment in the food industry, and linings of pressure vessels. The steel does not show resistance to intergranular corrosion before and after welding.

Application:

- Heat exchangers

- Acid and nitrogen oxide pipelines

- Acid storage tanks

- Acid transport tanks

- Dairy, fruit and vegetable and brewery industries

- Textile industry

- Household appliances
