CP Ti Gr.3

Name: CP Ti Gr.3
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

Gr.3(TA3) boasts an impressive strength-to-density ratio and superior corrosion resistance, making it a great choice for applications in need of enhanced strength and corrosion protection. Noted for its greater strength than Gr.1 and Gr.2, this grade is a superior option.

Equivalent grades

• CP Ti Gr.3
• UNS R50550
• Titanium Grade 3
• DIN 3.7055
• TA3

Chemical Composition Reference

0.05N-0.08C-0.015H-0.3Fe-0.35O-99Ti

Physical Property Reference

• Tensile Strength: 450Mpa

• Yield Strength: 380Mpa

• Elongation: 18%

• Area of Reducation: 30%

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:

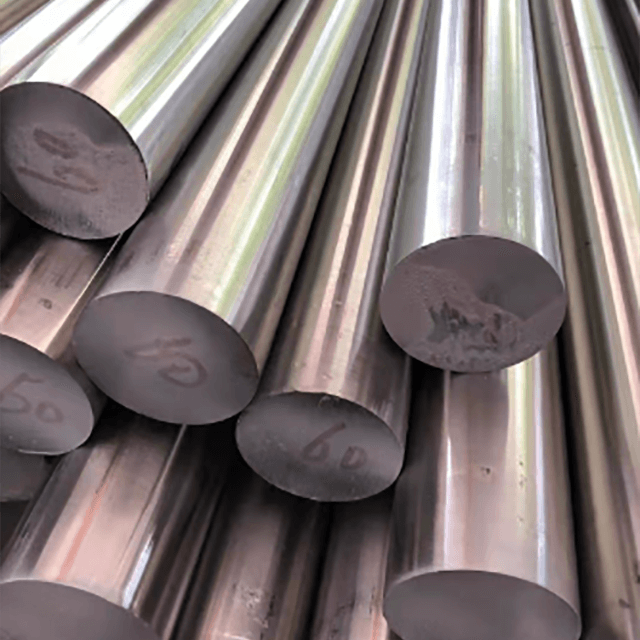

• Bar/Rod
• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

CP Ti Gr.3

Essential details

Gr.3(TA3) has excellent strength-to-density ratio and good corrosion resistance, and can be used in occasions that require high corrosion resistance and strength. The strength of grade 3 is higher than that of grade 1 and grade 2.

It has similar ductility and slightly poorer formability, but has higher mechanical properties. It is suitable for the manufacture of structural parts requiring light weight and high strength and parts requiring high corrosion resistance.

Application:

- Chemical industry (for mortgage containers, storage tanks with corrosive requirements)

- Aerospace structure

- Chemical processing

- Medical industry

- Marine industry
