Inconel 600

Name: Inconel 600
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

Inconel alloy 600 is constructed with nickel and chromium, making it suitable for use in temperatures ranging from cryogenic to 2000°F (1093°C). This alloy is non-magnetic and easily weldable, and it is often employed in corrosion-resistant applications.

Equivalent grades

• Inconel 600
• UNS N06600
• W.Nr. 2.4816
• NiCr15Fe
• NCF 600

Chemical Composition Reference

72Ni-15Cr-8Fe-0.2Cu-0.02C

Physical Property Reference

• Density: 8.42 g/cm³

• Tensile Strength: 550 MPa

• Yield Strength: 240 MPa

• Modulus of Elasticity: 214 GPa

• Elongation: 30 %

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod

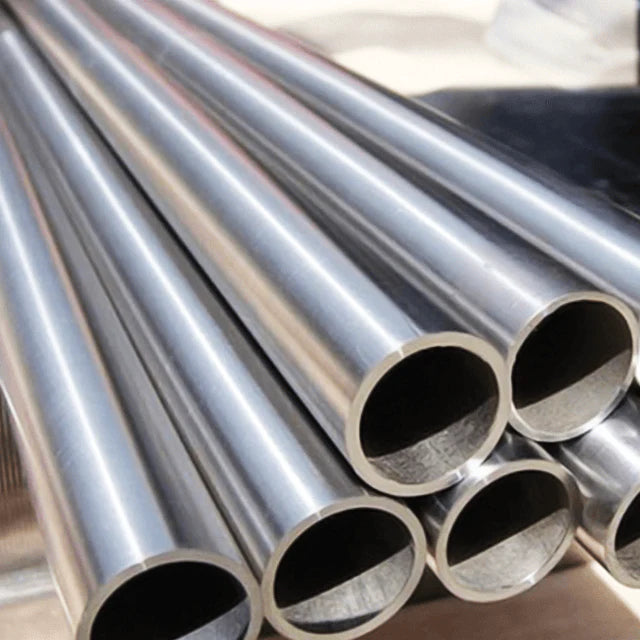

• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire

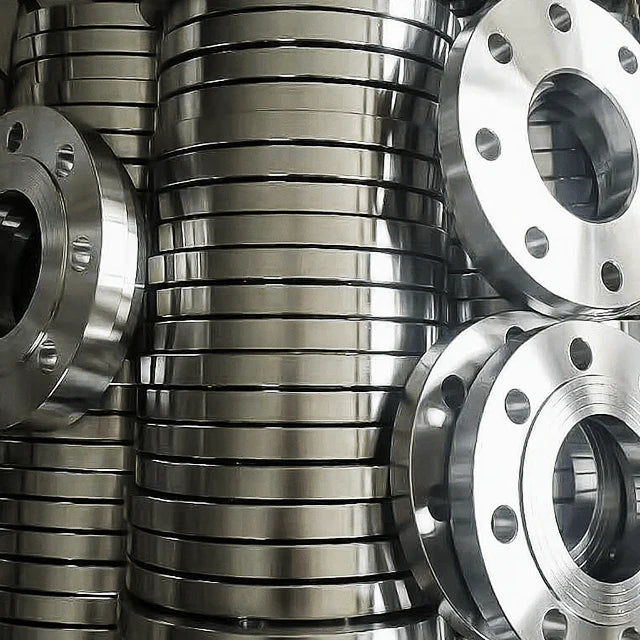

• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

Inconel 600

Essential details

Alloy 600 (UNS N06600) is a nickel-chromium alloy designed for use from cryogenic to elevated temperatures in the range of 2000°F (1093°C). Alloy 600 is non-magnetic and readily weldable.

The alloy is used in a variety of corrosion resisting applications. The high nickel content of Alloy 600 provides a level of resistance to reducing environments, while the chromium content of the material provides resistance to weaker oxidizing environments. The high nickel content of the material provides exceptional resistance to chloride stress corrosion cracking.

Applications:

- Aerospace Components

- Chemical Processing – chlorination equipment, fatty acids, hydrogen fluoride, magnesium chloride, vinyl chloride monomer, sodium sulfide, titanium dioxide

- Food Processing

- Petrochemical Processing – catalyst regenerators

- Power Generation – nuclear components

- Pulp and Paper – abietic acid equipment Thermal Processing – baskets and trays, boxes, muffles and retorts, nitriding containers, roller hearths, vacuum furnace components
