Nickel 212

Name: Nickel 212
Brand: Ninesteel
Availability: InStock

Product variants

Nickel 212 is a high-performance alloy designed for electrical and electronic applications. It is nickel-manganese strengthened, resulting in excellent thermal conductivity and corrosion resistance. This alloy is used to make lead wires and electrodes in lamps, making it an ideal choice for demanding electronics manufacturing.

Equivalent grades

• Nickel 212
• W.NR 2.4110
• UNS N02212
• AWS 073

Chemical Composition Reference

97(Ni+Co)-1.5~2.5Mn-0.25Fe-0.1C-0.2Cu-0.2Si-0.2Mg-0.006S

Physical Property Reference

• Density: 8.9 g/cm³

• Melting Point: 1440 ℃

• Tensile Strength: 400 MPa

• Elongation at break: 30%

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:

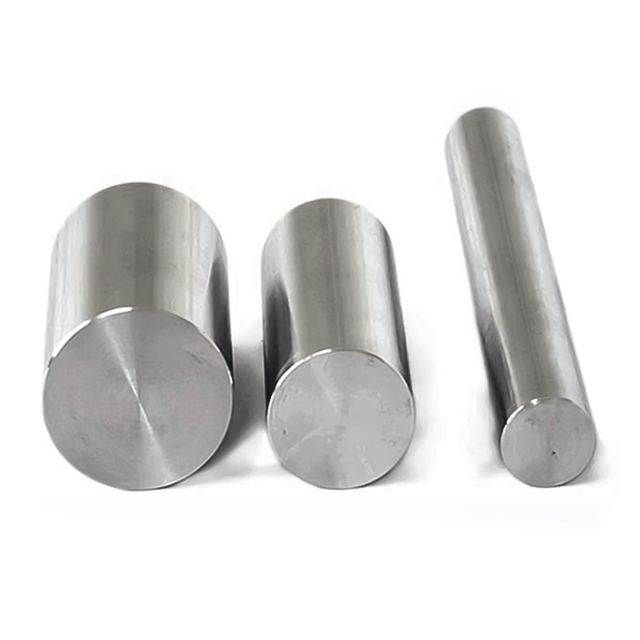

• Bar/Rod
• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire

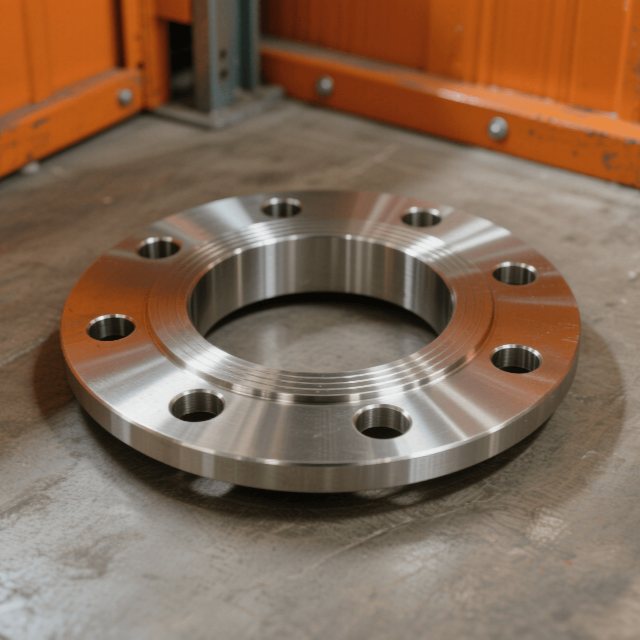

• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

Nickel 212

Essential details

Nickel 212 (W. Nr. 2.4110) is a wrought nickel alloy that offers excellent thermal conduction and corrosion resistance. Its strength is further enhanced with the addition of 2% manganese. It is commonly used for electrical and electronic applications such as wiring, lamp components, and electrodes.

Applications:

- Sparking contacts

- Electrical lead wires

- Supporting parts in lamps and cathode ray tubes

- Electrodes in glow-discharge lamps

- Heating cables
