Nimonic 80A

Name: Nimonic 80A
Brand: Ninesteel
Price: 9999.0 USD
Availability: InStock

Product variants

NIMONIC® 80A (UNS N07080/W. Nr. 2.4952 & 2.4631) is a nickel-chromium-based alloy containing titanium, aluminum, and carbon to enable hardening through aging for use at temperatures of up to 815°C (1500°F). It's ideal for applications where high strength and corrosion resistance are both important, such as turbine blades and hot-working tools.

Equivalent grades

• Nimonic 80A
• UNS N07080
• W.Nr. 2.4952
• W.Nr. 2.4631
• NiCr20TiAl

Chemical Composition Reference

0.08C-19.5Cr-75Ni-1.4Al-2.4Ti

Physical Property Reference

• Density: 8.19g/cm³

• Tensile Strength: 1250 MPa

• Yield Strength: 780 MPa

• Elongation at Break: 30%

•Melting Point: 1320 – 1365°C

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.

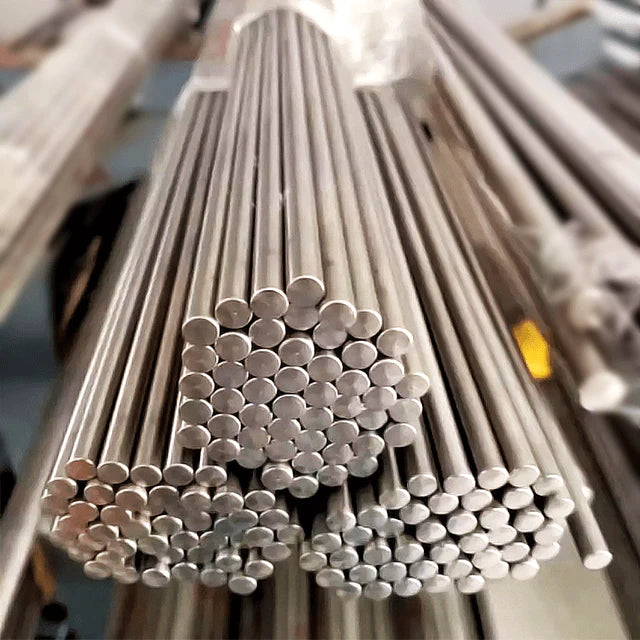

• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod
• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

Nimonic 80A

Essential details

NIMONIC® alloy 80A (UNS N07080/W. Nr. 2.4952 & 2.4631) is a wrought, age-hardenable nickel-chromium alloy, strengthened by additions of titanium, aluminum and carbon, developed for service at temperatures up to 815°C (1500°F). It is produced by high-frequency melting and casting in air for forms to be extruded.

Electroslag refined material is used for forms to be forged. Vacuum refined versions are also available. NIMONIC alloy 80A is currently used for gas turbine components (blades, rings and discs), bolts, nuclear boiler tube supports, die casting inserts and cores, and for automobile exhaust valves.

Applications:

- Gas turbine engineering

- Automobile exhaust valves

- Die-casting inserts and cores

- Nuclear boiler tube parts
