UNS S30815 - EN 1.4835

Name: UNS S30815 - EN 1.4835
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

UNS S30815 - EN 1.4835 is a heat-resistant, austenitic stainless steel, providing a combination of excellent corrosion resistance and high-temperature strength. This material is ideal for use in applications such as heat exchangers and furnace components.

Equivalent grades

• UNS S30815
• DIN 1.4835
• AISI 253 MA
• X9CrNiSiNCe21-11-2

Chemical Composition Reference

0.09C-0.17N-21Cr-11Ni-1.6Si,Ce

Physical Property Reference

• Density: 7800 kg/m³

• Tensile Strength: 700 MPa

• Yield Strength: 370 MPa

• Modulus of Elasticity: 200 GPa

• Elongation: 40

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod

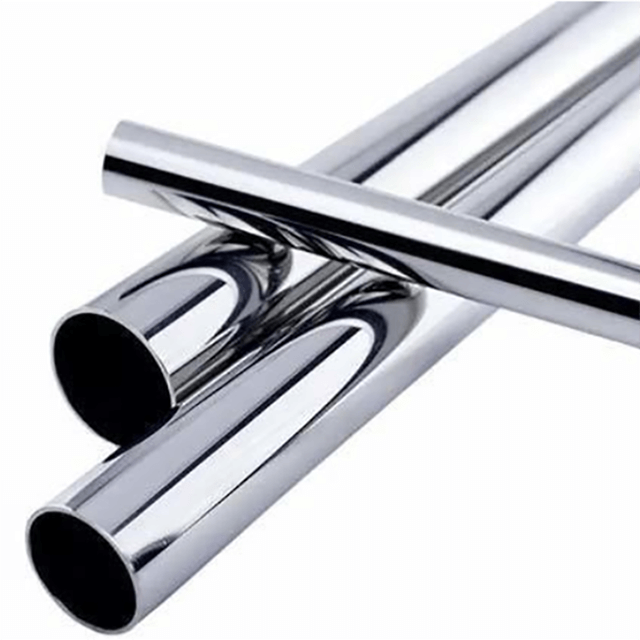

• Pipe/Tube
• Coil/Strip

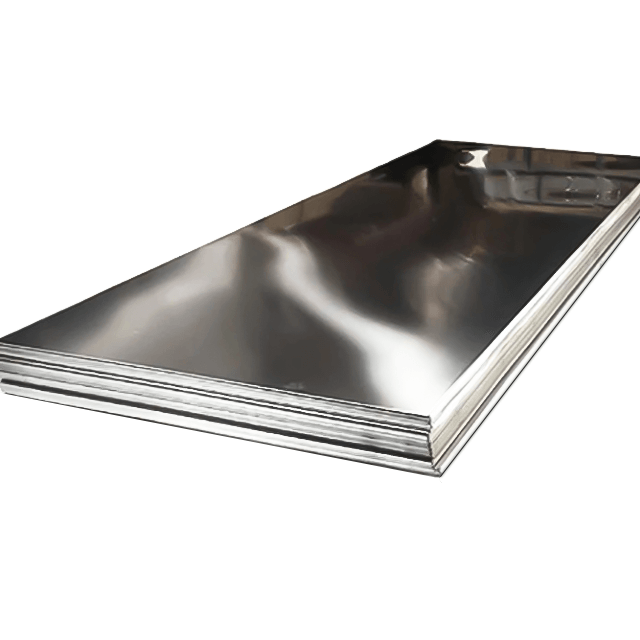

• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

UNS S30815 - EN 1.4835

Essential details

253Ma Stainless excellent service properties at high temperatures with ease of fabrication. It resists oxidation at temperatures up to 1150C andcan provide superior service to Grade 310 in carbon, nitrogen and sulphur containingatmospheres.

253MAR is a trademark ownedby Outokumpu Stainless AB, The standard arade desianation covering this grade is UNS S30815. Othermils produce arades compliant with UNS S30815, includina Sirius S15e, 253 MA contains a fairly low nickel content, which cives itsome advantage in reducing sulphide atmospheres when compared to hich nickel alloys and SS310, The inclusion of hich chromiumsilicon, nitrocen and cerium contents cives the stee aood oxide stability, high elevated temperature (creep) strenath and excellentresistance to sigma phase precipitation, The austenitic structure cives this grade excellent touchness, even down to cryogenictemperatures.

Applications:

- Combustion chambers

- Corrugated Boxes

- Boiler Nozzles

- Pyrolysis Vessels

- Radiant Tubes

- Bar Baskets

- Cyclones
