UNS S32101- EN 1.4162

Name: UNS S32101- EN 1.4162
Brand: Ninesteel
Price: 9999.0 USD
Availability: InStock

Product variants

S32101 is a duplex stainless steel exhibiting exceptional corrosion resistance and strength, equal to that of other duplex grades, as well as outstanding resistance to chloride stress corrosion cracking.

Equivalent grades

• UNS S32101
• DIN 1.4162
• LDX 2101
• X2CrMnNiN22-5-2

Chemical Composition Reference

0.03C-0.22N-21.5Cr-1.5Ni-0.3Mo-5Mn

Physical Property Reference

• Density: 7.7 g/cm³

• Tensile Strength: 700 MPa

• Yield Strength: 450 MPa

• Specific Heat Capacity: 500 J/kg K

• Thermal Conductivity: 15 W/m K

• Electrical Resistivity: 0.8Ωmm2/m

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick

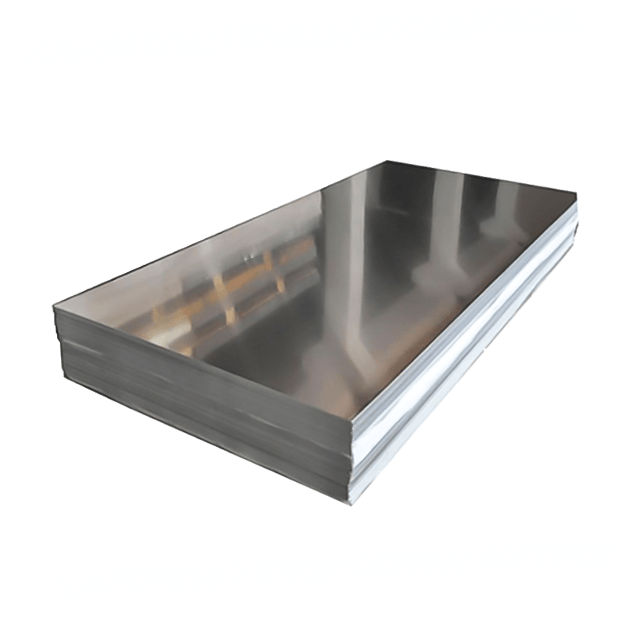

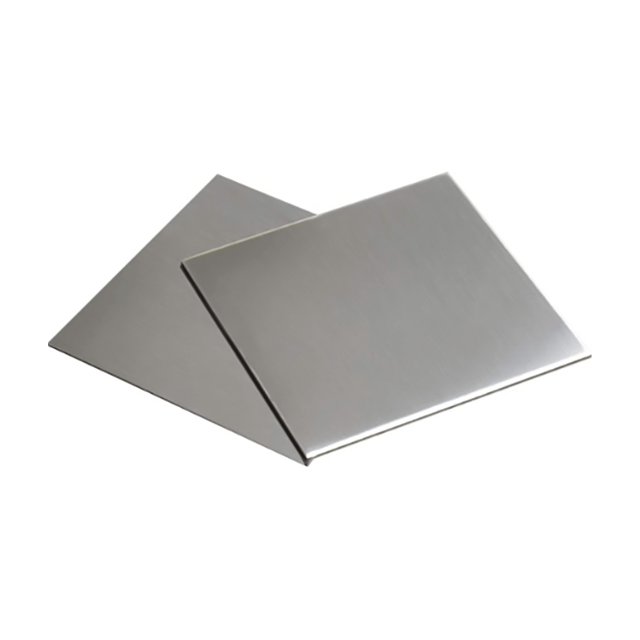

• Plate: 0.5~200mm Thick

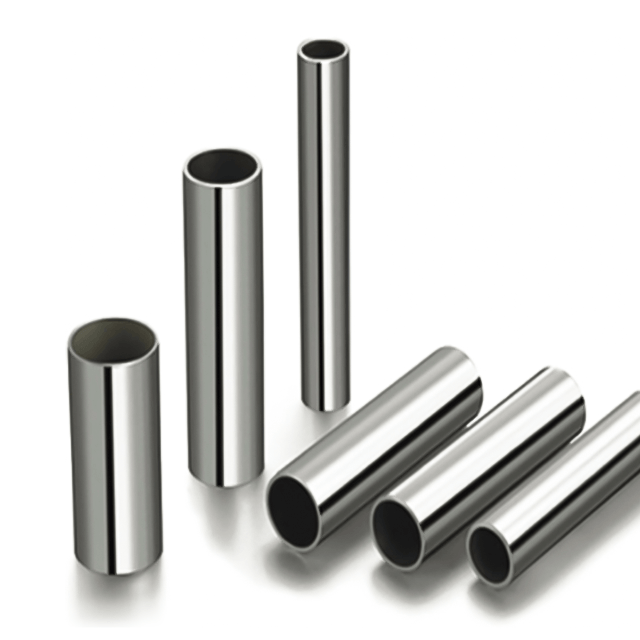

• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod
• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

UNS S32101- EN 1.4162

Essential details

LDX 2101 is a duplex stainless steel, which is both austenite and ferrite. It has very good strength and is known to have excellent corrosion resistance. This alloy is also praised for its excellent durability and weldability.

Typical Applications:

- Pulp and paper manufacturing

- Food processing

- Oil & Gas Exploration

- Piping and Heat Exchangers
